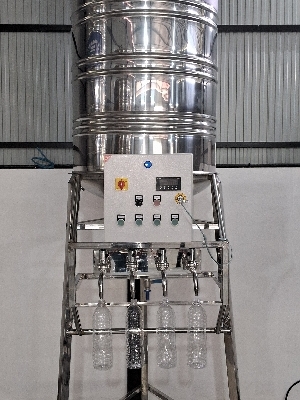

Water Bottle Filling Machine

Name: Water Bottle Filling Machine
Brand: SRI BALAJI INDUSTRIES
Price: 85000.0 INR
Availability: InStock

Price 85000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Water Bottle Filling Machine Specification

Product Type
Water Bottle Filling Machine

Material
Stainless Steel

Application
Water Bottling Plants, Beverage Industry

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Electrical Panel with Switches

Drive Type
Electric

Voltage
220V

Weight (kg)
Approx. 100 kg

Dimension (L*W*H)
900mm x 700mm x 2200mm

Capacity
6 bottles per cycle

Feature
Multi-Nozzle Filling, Stainless Steel Construction, Easy Operation

Color
Silver

Nozzle Type
Six filling nozzles for simultaneous filling

Installation
Easy floor standing installation

Water Contact Parts
All parts in contact with water are food grade SS

Suitable Bottle Material
PET, HDPE

Tank Capacity
Approx. 500 Liters

Frame Material
Heavy Duty SS304 Stainless Steel

Operation Mode
Manual start, automatic stop after fill

Power Consumption
0.5 kW

Bottle Size Supported
200ml to 2 Liters

Filling Accuracy
2ml

Safety Features
Overload Protection

Maintenance
Low maintenance required

About Water Bottle Filling Machine

Sri Balaji Industries manufactures high quality Water Bottle FillingMachines designed for efficiant hygienic and reliable water bottling operations this machine is suitable for filling purified drinking water, mineral water, and packaged drinking water into PET bottles with consistent and accurate filling

Efficient Multi-Nozzle Filling System

Equipped with six high-precision filling nozzles, this machine enables simultaneous filling of up to six bottles in each cycle. The advanced nozzle design ensures 2ml filling accuracy, significantly reducing wastage and improving throughput. This feature is especially beneficial for large-scale water bottling plants and beverage businesses seeking to optimize their production line.

Superior Hygiene and Durability

Constructed with SS304 heavy duty stainless steel, all parts that come into contact with water are made from food grade stainless steel. This guarantees that bottles are filled in a safe and sanitary environment, while also ensuring the machine's longevity. Its corrosion-resistant materials make it ideal for high-performance applications in demanding environments.

User-Friendly Operation and Minimal Maintenance

The machine operates with a simple manual start and automatic stop mechanism, making it easy to use even for operators without specialized training. Maintenance is hassle-free and requires only basic periodic checks, owing to its robust design and quality components. The electrical panel with switches allows efficient control, contributing to reliable everyday operation.

FAQ's of Water Bottle Filling Machine:

Q: How does the Water Bottle Filling Machine ensure precise filling for different bottle sizes?

A: The machine uses a multi-nozzle system with six filling heads, each calibrated to deliver a filling accuracy of 2ml. This setup caters to bottle capacities ranging from 200ml to 2 liters, ensuring consistent and reliable filling across supported bottle sizes.

Q: What types of bottles can be used with this filling machine?

A: The machine is compatible with PET and HDPE bottles, supporting volume ranges from 200ml up to 2 liters. This versatility makes it suitable for a variety of bottled water and beverage applications.

Q: When is maintenance required for the Water Bottle Filling Machine?

A: Owing to its low maintenance design and quality materials, routine maintenance is only needed periodically for cleaning and basic inspection of components. The use of heavy duty SS304 stainless steel reduces the frequency of any major service requirements.

Q: Where can the Water Bottle Filling Machine be installed?

A: Its floor-standing design and compact dimensions (900mm x 700mm x 2200mm) make it easy to install in water bottling plants, beverage production sites, or any facility with a suitable workspace. All installation steps are straightforward and do not require specialized tools.

Q: What is the process of operating this semi-automatic filling machine?

A: Operation is initiated manually through the electrical panel's switches. Bottles are placed under the nozzles, filling begins with manual start, and the machine automatically stops once each bottle is filled to the set level.

Q: How does the machine contribute to safety during operation?

A: The filling machine is equipped with overload protection, and all water-contact parts are made from food grade SS304 stainless steel, minimizing contamination risks and ensuring user and product safety throughout the filling process.

Q: What benefits does the Water Bottle Filling Machine offer to bottling businesses?

A: Businesses benefit from increased productivity due to simultaneous multi-bottle filling, precise filling accuracy, minimal maintenance requirements, and hygienic operation. Its robust construction and easy operation enhance reliability and efficiency in water and beverage bottling applications.
